approval-flows — write-side walkthrough

The approval-flows template is the canonical Tasks × Apps Dockyard example. Two contract-first task-augmented tools driving a human-in-the-loop round-trip from inside an iframe. The write-side counterpart to analytics-widgets.

Scaffold

dockyard new my-approvals --template approval-flows
cd my-approvals

If you installed Dockyard via go install …@latest, that's all — the generated go.mod pins the published module and resolves with no extra flag. If you built Dockyard from source, add --dockyard-path /path/to/dockyard so the generated go.mod and web/package.json point at your local checkout (D-080).

The scaffold produces a project with:

my-approvals/
├── README.md
├── dockyard.app.yaml          # two tools (task_support: required) + one App
├── main.go                    # boots a real tasks.Engine (D-135)
├── internal/
│   ├── contracts/             # RequestApproval{Input,Output}, ProposeWithEdits…
│   └── handlers/              # handlers drive approval before or during a task
├── fixtures/                  # six fixtures per tool
└── web/
    └── src/
        ├── App.svelte         # renders the approval card / edits form
        └── …

The two tools

Tool	What it does
request_approval	Pause for human approval of a single decision; returns approved/rejected + reason.
propose_with_edits	Propose structured changes (fields with current + proposed values); the user edits and approves.

Both declare task_support: required — durable approval work is the product, not an optional capability. The scaffolded main.go attaches a real tasks.Engine (decision D-135) so the tools run as durable tasks against the real runtime/server.

Run + inspect

dockyard new already ran go mod tidy and dockyard generate, so the project's Go dependencies and contract artifacts (JSON Schema + TS) are ready. (If you scaffolded with --no-postgen, run those two first.)

A template ships a Svelte UI, so two one-time steps come before the dev loop — skip them and dockyard dev fails with vite: command not found (web deps not installed) and open web/dist/index.html: file does not exist (the embedded bundle hasn't been built yet):

# 1. Install the web deps once (provides the Vite bundler):
(cd web && npm install)

# 2. Build once so the embedded UI bundle (web/dist) exists:
dockyard build

Now run the dev loop, which auto-attaches the inspector and prints its URL (cmd-click to open):

dockyard dev
# ...
# INFO inspector ready at http://127.0.0.1:54321

Prefer a standalone inspector against a built server? Run it on HTTP in one terminal and attach in another:

DOCKYARD_TRANSPORT=http dockyard run                   # terminal 1
dockyard inspect --url http://127.0.0.1:8080 --dir .   # terminal 2

Fire request_approval from the Tools tab. The App renders an approval card; click Approve. Depending on when approval is needed, the inspector shows either a core MRTR retry before task creation or task input during the task lifecycle:

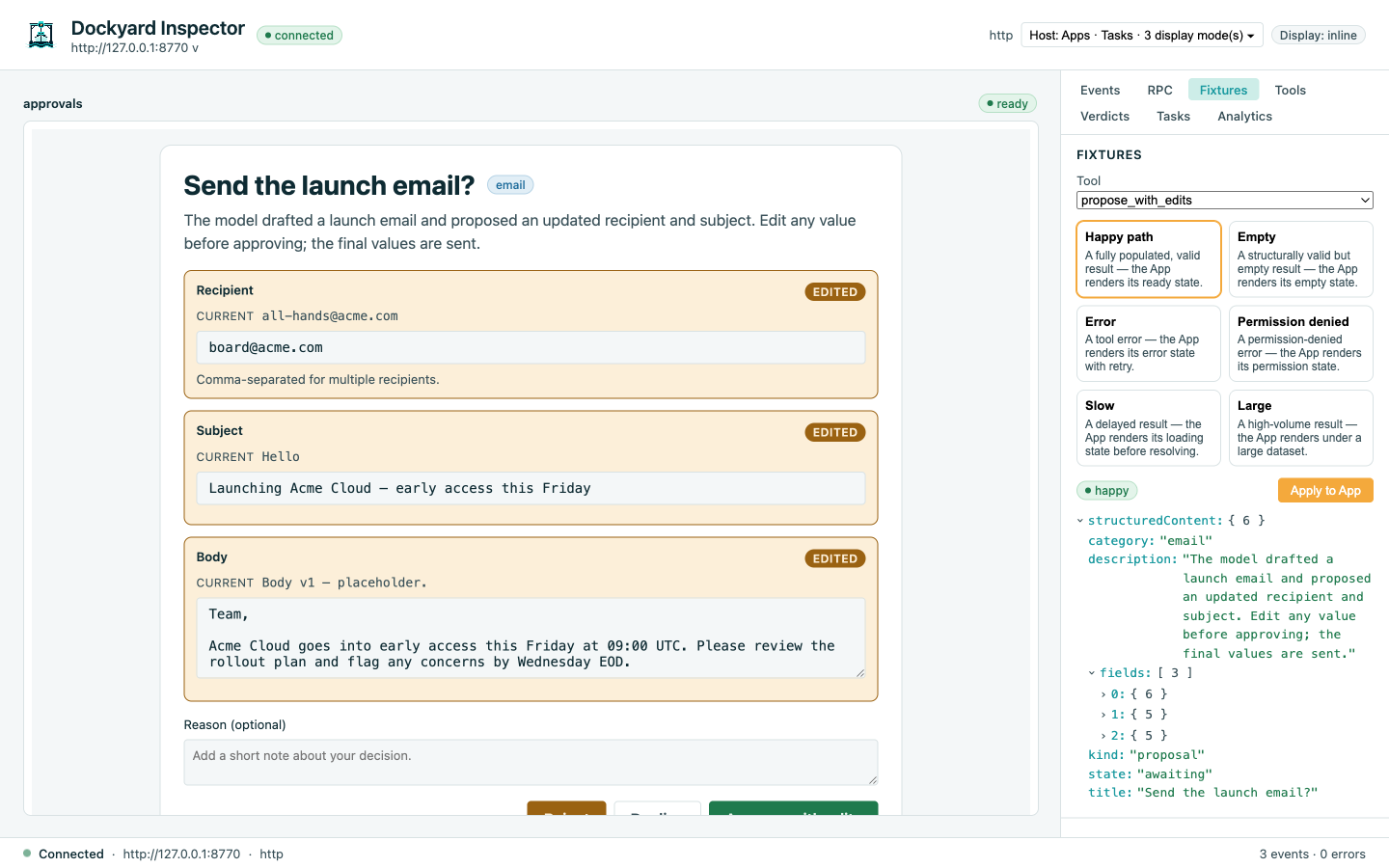

propose_with_edits renders a form whose proposed values are editable; approve with edits sends the user's values back through the bridge:

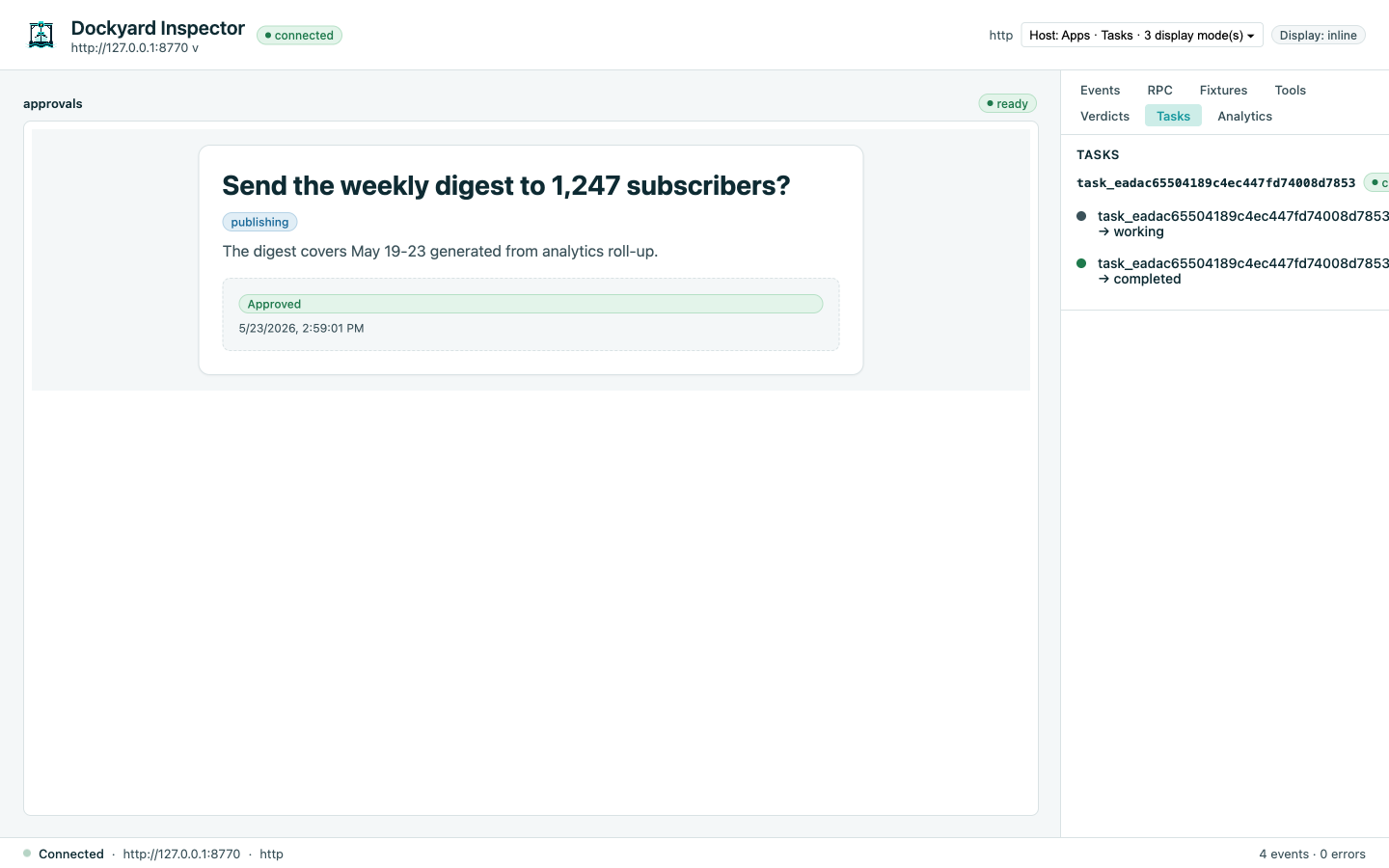

The Tasks panel renders each task's lifecycle as a Timeline:

How the round-trip works

There are two standards-based input lifecycles. Do not combine their state.

Approval before durable work: core MRTR

1. The host calls tools/call and receives resultType: "input_required" with inputRequests and optional opaque requestState.
2. The host collects the response, then invokes tools/call again with a new JSON-RPC ID, the original arguments, inputResponses, and the echoed requestState.
3. The retried call completes or creates the durable task. Core MRTR does not update an existing task and never uses tasks/update.

Approval during durable work: task update

1. The original tools/call returns a CreateTaskResult.
2. The handler requests input through its TaskHandle; tasks/get then reports status: "input_required" with outstanding inputRequests.
3. The host collects the response and sends matching inputResponses through tasks/update; it does not retry the original tools/call and there is no core requestState on the task.
4. The host resumes polling with tasks/get until the task completes.

The Tasks panel renders the whole sequence as a Timeline so you can correlate UI events with task state transitions.

Dockyard-host-only

The App bridge notification that carries an inline response and live task progress are Dockyard extensions. The inspector translates the explicit operator action into the appropriate standard MCP operation: retry the original method for core MRTR, or call tasks/update for task input. A stock host that does not implement those bridge notifications ignores them. Design the App so its core value does not depend on this inline convenience. See the Tasks×Apps note in the UI-resources guide.

Capability degradation

If the host hasn't negotiated the Tasks capability, the handler returns a synchronous "requires interactive host" stub instead of crashing (RFC §7.5, the capability-driven rule from AGENTS.md §6). Flip the capability toggle in the inspector to test the degradation path.

Adapt it

• Replace the synthetic approval logic with your real decision flow — the handlers' TaskHandle.RequestInput API is the integration point.
• Wire to a real auth context — the scaffold opts RequestorIdentifiable=false on stdio (single-user); on HTTP plug a bearer-token resolver into WithTasks.
• Add more fields to the edits form — extend the ProposeWithEditsInput.Fields slice; the App's FieldDiff component composes the editable current → proposed pair from web/ui/.

What next

• analytics-widgets walkthrough — the read-side example.
• Inspector guide — Tasks panel deep dive.
• test-with-the-inspector agent skill — how an AI coding agent drives the inspector while building.
